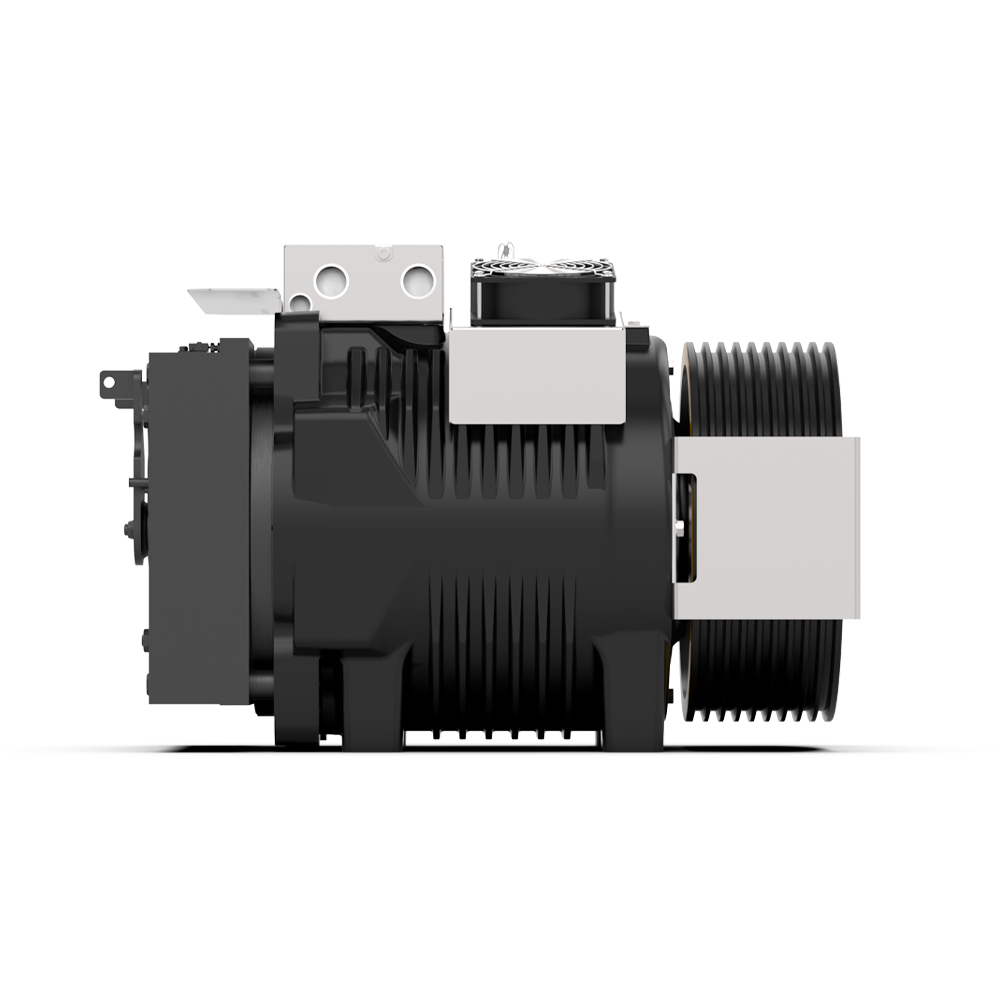

Gearless SG40HF

GEARLESS SG40HF is a gearless traction machine for elevators and lifting platforms with maximum capacity up to 2000 kg.
Several options and special versions are available upon request.

Torque
Rated

550 Nm (S3 40%)

Power Range
(min - max)

6,1 – 19,5 kW

Static Load
Maximum

34,3 kN – 3500 kg

Maximum
Capacity

2000 kg

Nominal Motor Voltage

360 V – 208 V

  • Bedplate
  • Pulley Protection
  • Kit Rescue
  • Encoder Cable
  • Power Cable
  • Service Cable
  • Terminal Box With Side Application
  • Brake Power Supply
  • Release Levers
  • Levers for Brake Hand Release with Remote Operation
Play Video

Unpacking gearless machines SG series

Play Video

Nip guard gearless machines SG series assembly instructions

Play Video

Encoder and brake replacement gearless machines SG series
