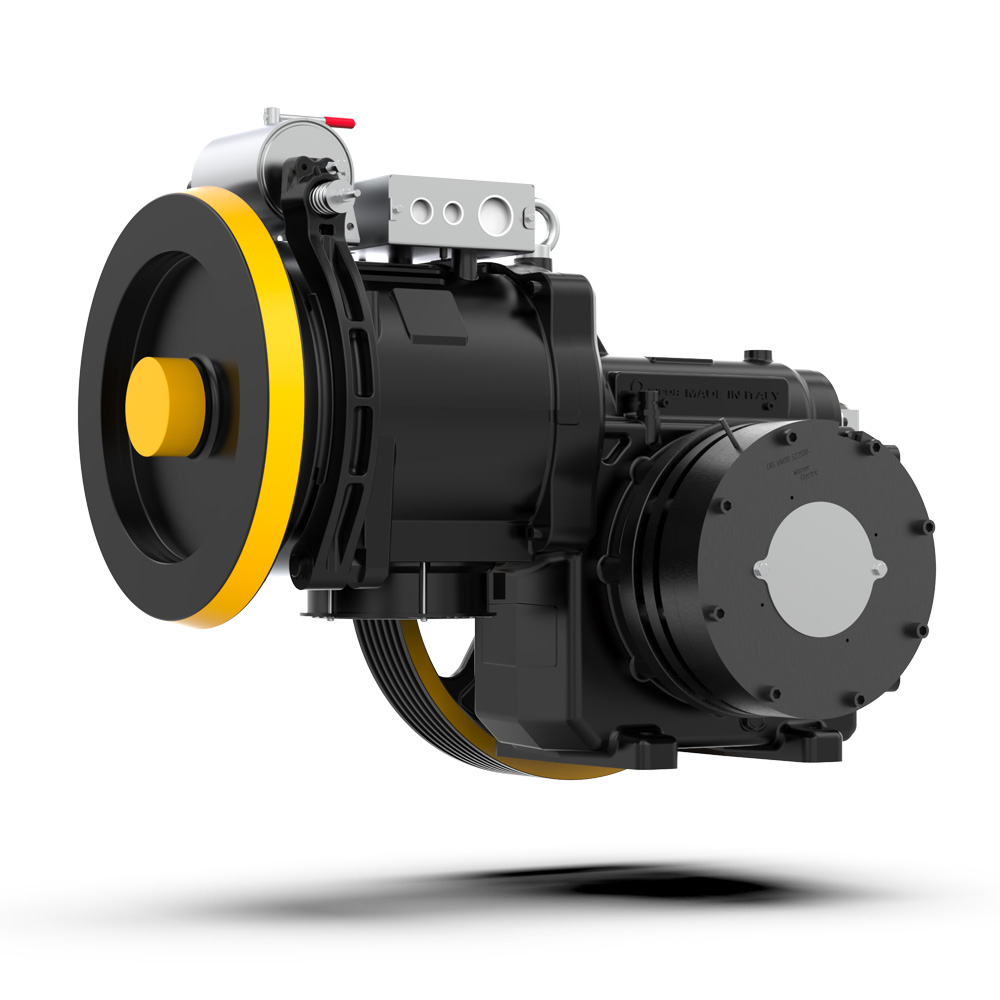

Geared SH160 SSB

GEARED SH160 SSB is a gearbox for elevators and lifting platforms with maximum capacity up to 1250 kg.
Several options and special versions are available upon request.
Macchina per ascensore con Motore Geared - Modello

Maximum Static Load

42,2 kN – 4300 kg

Maximum Capacity

1250 kg

Reduction Ratio

1/55; 1/43; 1/35; 2/53; 2/43; 3/41

Oil Capacity

9 l

Power Range

50 Hz 5,1 ÷ 20 kW
60 Hz 5,5 ÷ 18 kW

  • Microcontacts
  • Encoder
  • Pulley Protection
  • Bedplate
  • Rope Protection
  • Diverting Pulley Protection


TECHNICAL SHEETS

–



TECHNICAL DRAWINGS



TECHNICAL MANUALS

–



CERTIFICATES

MUM0211_REV12 (PDF)

DOWNLOAD
CATALOGUE
REQUEST
INFORMATION
