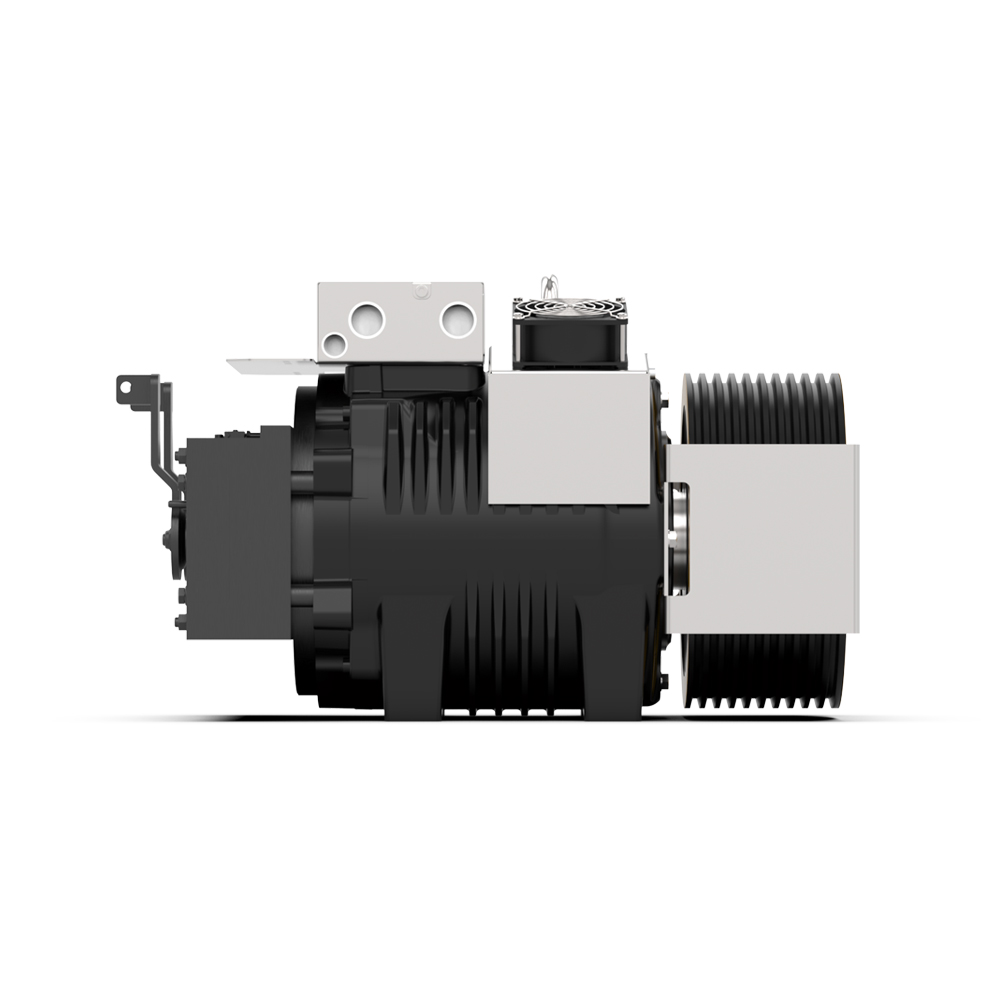

Gearless SG22

GEARLESS SG22 is a gearless traction machine for elevators and lifting platforms with maximum capacity up to 1600 kg.
Several options and special versions are available upon request.


290 Nm (S3 40%)

Power Range
(min - max)

3,1 – 8,8 kW

Static Load

27,5 kN – 2800 kg


1600 kg

Nominal Motor Voltage

360 V – 208 V

  • Bedplate
  • Pulley Protection
  • Ventilation Kit
  • Kit Rescue
  • Encoder Cable
  • Power Cable
  • Service Cable
  • Terminal Box With Side Application
  • Brake Power Supply
  • Release Levers
  • Levers for Brake Hand Release with Remote Operation
Play Video

Unpacking gearless machines SG series

Play Video

Nip guard gearless machines SG series assembly instructions

Play Video

Encoder and brake replacement gearless machines SG series
