PRODUCTS / GEARED SERIES

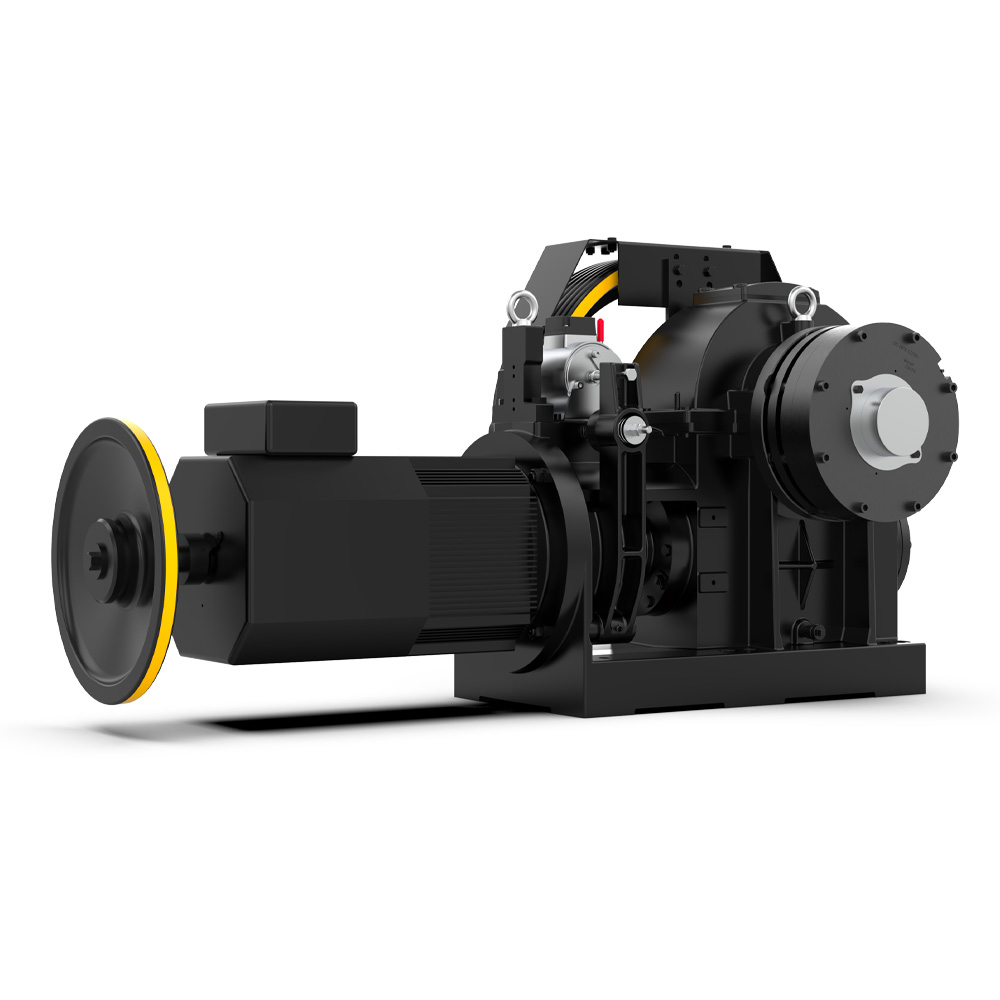

Geared MR21 SSB

GEARED MR21 SSB is a gearbox for elevators and lifting platforms with maximum capacity up to 2000 kg.
Several options and special versions are available upon request.

Maximum Static Load

55 kN – 5600 kg
(vers. TS 72,6 kN – 7400 kg)

Maximum Capacity

2000 kg

Reduction Ratio

1/62; 1/51; 1/40; 2/63; 2/51; 3/47

Oil Capacity

7,8 l

Power Range

50 Hz 7,5 ÷ 30 kW
60 Hz 8,2 ÷ 33 kW



TECHNICAL SHEETS

Technical sheet MR21 SSB (PDF)



TECHNICAL DRAWINGS



TECHNICAL MANUALS




CERTIFICATES

MUM0211_REV12 (PDF)

REQUEST
INFORMATION
DOWNLOAD
CATALOGUE
CONFIGURE
ONLINE
