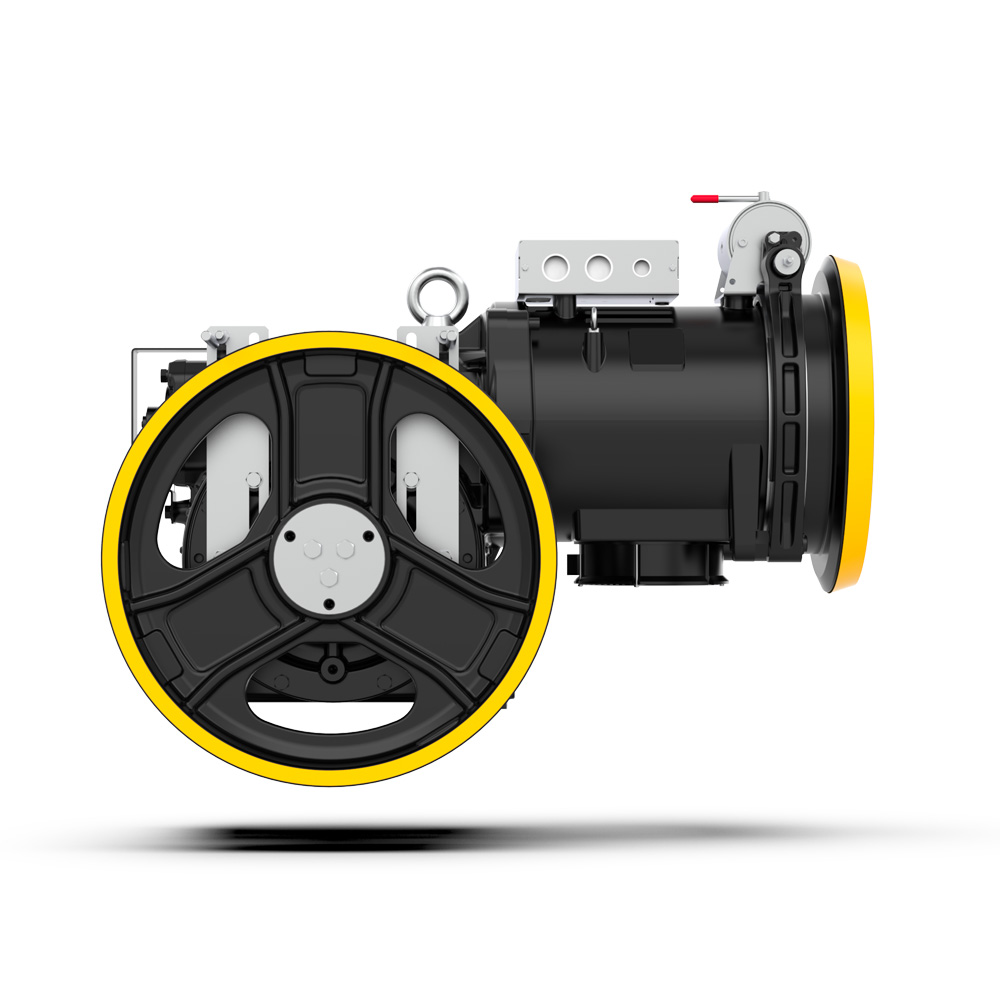

Geared SH190

GEARED SH190 is a gearbox for elevators and lifting platforms with maximum capacity up to 1800 kg.
Several options and special versions are available upon request.

Maximum Static Load

51 kN – 5200 kg

Maximum Capacity

1800 kg

Reduction Ratio

1/40; 1/51; 1/62; 2/59; 3/47

Oil Capacity

11,5 l

Power Range

50 Hz 4,2 ÷ 30 kW
60 Hz 4,7 ÷ 33 kW

SH190 SSB

Slow Shaft Brake

 SH190 SSB
  • Microcontacts
  • Encoder
  • Pulley Protection
  • Bedplate
  • Rope Protection
  • Diverting Pulley Protection


TECHNICAL SHEETS

Technical sheet SH190 (PDF)



TECHNICAL DRAWINGS



TECHNICAL MANUALS




CERTIFICATES

MUM0211_REV12 (PDF)

DOWNLOAD
CATALOGUE
REQUEST
INFORMATION
