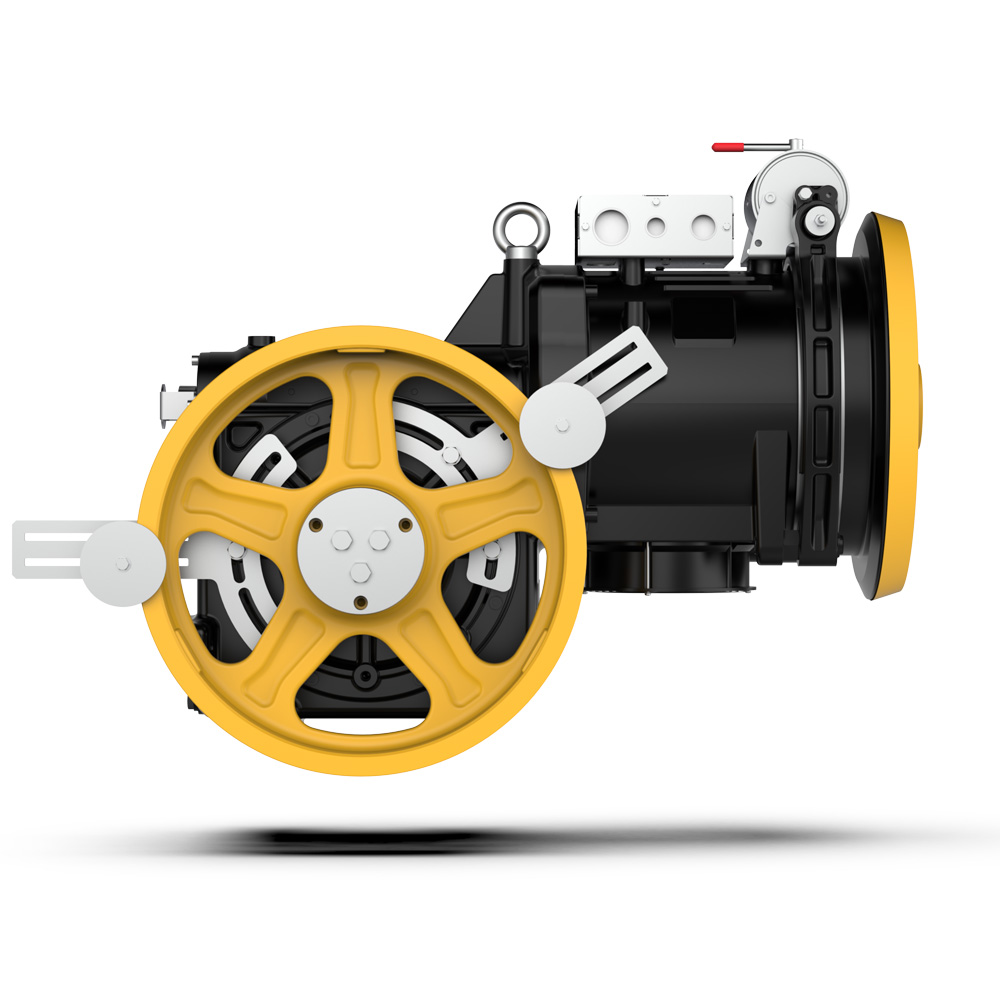

Geared SH160
GEARED SH160 is a gearbox for elevators and lifting platforms with maximum capacity up to 1250 kg.
Several options and special versions are available upon request.
Several options and special versions are available upon request.
Maximum Static Load
42,2 kN – 4300 kg
Maximum Capacity
1250 kg
Reduction Ratio
1/55; 1/43; 1/35; 2/53; 2/43; 3/41
Oil Capacity
9 l
Power Range
50 Hz 5,1 ÷ 20 kW
60 Hz 5,5 ÷ 18 kW

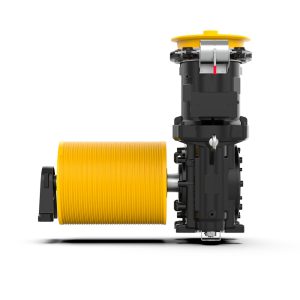

SH160TDrum |  |

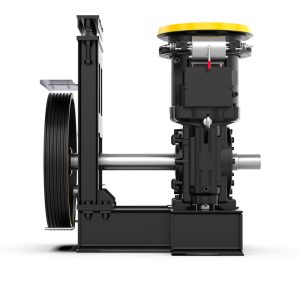

SH160LSLong shaft |  |

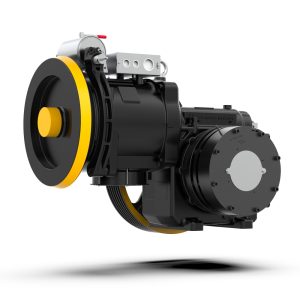

SH160 SSBSlow Shaft Brake |  |
|
